STUDIO LCR SOUNDBARS

‘Premium quality audio with bespoke, custom width grilles to fit any TV.

48 hour turn around’*





STUDIO 65

Perfect for most 75” panels and above

Just like the superb Studio 55, the Studio 65 is a powerhouse of accomplishment, inginuity and engineering. Taking the total of long-throw carbon fibre mid-woofers up to 8 and keeping the stunning high-performance XT tweeters for the same clarity and crystal clear treble response as the Studio 55 but with added low end ability.

The Studio 65 is perfect for most panels from 75” and above.

  • Dimensions: H/W/D (mm) 106 x 1647 x 57

  • Frequency Response - 70Hz - 50Khz +/- 3dB

  • Power Handling: 75-150 watts

  • Includes Wall and surface mounting kit

  • Minimum TV width - 1662mm

  • Maximum TV width 1967 mm

  • Standard width grille included Custom width grille available at extra cost

  • Brackets are not included with the Studio Soundbars

    *We aim for a 48 Hour turn around on grilles with no cut out and with standard black or white grille cloth colours. Bespoke colours and cut outs will take longer.

STUDIO 55

Perfect for 65” panels and above

The impressive Studio 55 (Typically for 65" TVs and over) is an astonishing piece of audio engineering. With six long-throw carbon fibre mid-woofers complimented by high-performance XT tweeters giving you amazing clarity and crystal clear response. If the installation includes a very large display, the Studio 55 is here to make the audio experience as every bit as impressive as the picture itself.

The Studio 55 is perfect for most panels from 65” and above.

  • Dimensions: H/W/D (mm) 106 x 1357 x 57

  • Frequency Response: 80Hz - 50KHz (+/- 3dB)

  • Power Handling: 75-150 watts

  • Nominal Impedance: 6 Ohms

  • Includes Wall and surface mounting kit

  • Minimum TV width - 1375mm

  • Maximum TV width 1967 mm

  • Standard width grille included Custom width grille available at extra cost

  • Brackets are not included with the Studio Soundbars

    *We aim for a 48 Hour turn around on grilles with no cut out and with standard black or white grille cloth colours. Bespoke colours and cut outs will take longer.




Studio 39 edits (9 of 22).jpg

STUDIO 46

Perfect for 55” panels and above

The most versatile of the Studio series (typically for 55" TVs and above), the Studio 46 with its extruded aluminium enclosure is 7 inches wider than the 39 allowing more movement of air creating a wider soundstage and a more all-encompassing sonic experience. The Studio 46 having 6 long throw carbon fibre Mid-range woofers, giving it two more than in the Studio 39, 3 DX Super Audio Tweeters, 2 stage tweeters. For larger rooms and more powerful systems, the Studio 46 will deliver the detail and impact necessary for an impressive audio/video experience.

The Studio 46 is perfect for most panels from 55” and above.

  • Dimensions: H/W/D (mm) 106 x 1137 x 57

  • Frequency Response: 80Hz - 40KHz (+/- 3dB)

  • Power Handling: 75-150 watts

  • Nominal Impedance: 6 Ohms

  • Includes Wall and surface mounting kit

  • Minimum TV width - 1155mm

  • Maximum TV width 1967 mm

  • Standard width grille included Custom width grille available at extra cost

  • Brackets are not included with the Studio Soundbars

    *We aim for a 48 Hour turn around on grilles with no cut out and with standard black or white grille cloth colours. Bespoke colours and cut outs will take longer.

Studio 39 edits (15 of 22) smaller.jpg

STUDIO 39

Perfect for 49” panels and above

The smallest of the Studio series, the soundbar 39 will fit on displays measuring 39 inches wide (typically 43" TVs and above). This compact yet powerful Soundbar has the same proprietary woven, carbon-fiber mid-woofers found on as it larger siblings. The 39 is ideal for smaller displays in systems that still demand excellent sonic performance and imaging.

The Studio 39 is perfect for most panels from 49” and above.

  • Dimensions: H/W/D (mm) 106 x 950 x 57

  • Frequency Response: Left/Right 100Hz - 30Khz (+/- 3dB)

  • Centre - 80Hz - 30KHz

  • Power Handling: 50-100 watts

  • Nominal Impedance: 6 Ohms

  • Includes Wall and surface mounting kit

  • Minimum TV width - 966mm

  • Maximum TV width 1967 mm

  • Standard width grille included Custom width grille available at extra cost

  • Brackets are not included with the Studio Soundbars

    *We aim for a 48 Hour turn around on grilles with no cut out and with standard black or white grille cloth colours. Bespoke colours and cut outs will take longer.



NEED HELP SPECIFYING OR INSTALLING ANY OF OUR PRODUCTS?




AND FIND OUT HOW WE CAN HELP!


LCR DualMono® Mk II

The perfect amalgamation of left, centre and right in 2 cabinets

Available with bespoke made to size grilles to match any TV




PORTRAIT

These speakers are designed to allow for true audio/video integration, elegant unobtrusive aesthetics and state-of-the-art sound, providing Artison's Total Involvement Experience™. Portrait gives adjustable angle tweeters and additional bass drivers

  • Min TV height - 670mm

  • Max TV height - 1199mm

  • Dimensions without grille HxWxD: 640 x 160 x 60mm

  • Frequency Response: 80Hz - 30KHz (+/-3dB)

  • Power Handling: 100-200 watts

  • Nominal Impedance: 6 Ohms

  • Grilles not included

  • TV mounting bracket not included

  • In-Wall kit option

  • Can be mounted on wall or in cabinetry

    *We aim for 48 Hour turn around on grilles with standard black or white grille cloth colours. Bespoke colours take longer.

    Extended height grille available at extra cost

SKETCH

Ideal attachable sound solution for today's flat panel displays, providing cinema style high fidelity audio - all for a "matinee price". The high performance S-LCR-DM Mk IIs bring out the very best in any flat panel TV experience, with powerful theatre-like sound

  • Min TV height - 670mm

  • Max TV height - 1199mm

  • Dimensions without grille HxWxD: 640 x 160 x 60mm

  • Frequency Response: 80Hz - 20KHz (+/-3dB)

  • Power Handling: 75-150 watts

  • Nominal Impedance: 6 Ohms

  • Grilles not included

  • TV mounting bracket not included

  • In-Wall kit option

  • Can be mounted on wall or in cabinetry

    *We aim for a 48 Hour turn around on grilles with standard black or white grille cloth colours. Bespoke colours take longer.

    Extended height grille available at extra cost


Custom size and colour grilles available


AMPLIFICATION

Backpack P5

The worlds smallest 5.1 amplifier

CONTROL 4, CRESTRON and CRESTRON HOME WORKS DRIVER NOW AVAILABLE for backpack p5 £75+VAT

  • Auto voltage sensing 110-230 AC

  • Audio - Dolby Digital, DTS, PL11 Decoding

  • Video - Dolby Vision and HDR10

  • Full OSD

  • (LCR) 3 x 75W @ 4 Ohm

  • (Surrounds) 2 x 30W @ 4 Ohm

  • LFE out

  • HDMI in x 3. HDMI out x 1 (V2.0) V2. 2.2 HDCP, ARC, CEC, 3D, 4K

  • Toslink x 1

  • Stereo mini jack x 1

  • Bluetooth 4.0

  • Wi-Fi (b/g/n)

  • RJ 45 x 1

  • USB Type a - Power only 1A

  • IR Jack and IR sensor (front panel)

  • Dimensions: H/W/D (mm) 30 x 250 x 245



RCC bass SOLUTIONS





Vibration free Reactance Cancelling Configuration hidden bass solutions

HIDDEN BASS


RCC160 1.jpg

RCC160

The all new RCC160 MKII features Artison’s Reactance Cancelling Configuration, an innovation that eliminates unwanted mechanical forces that cause unwanted vibration and distortion; this means all you hear is the music as the artist intended.

Built around next generation subwoofer speaker technology and sold in pairs, the RCC160 offers the equivalent of two eight-inch subwoofers. Offering the RCC160 MK II in two separate enclosures allows system designers to intelligently place each subwoofer where they can provide the smoothest and most accurate in-room bass response.

Supplied with RCC320MKII & RCC160

Supplied with RCC320MKII & RCC160

Supplied with RCC160

Supplied with RCC160

  • Driver compliment (2) RCC MKII 4” X 6” Woofers

  • Impedance: 16 Ω, 8 Ω per pair

  • Frequency Response: 30 Hz – 160 Hz ± 3 dB

  • Sold in Pairs

  • Cabinet: H (190mm) x W (354mm) x D (89mm)

  • Weight: 14 lbs. / 6.4 kg.

  • Designed to work with the RCC1000-SA MKII Amplifier

  • IP 65 Rating

  • Solid Aluminum Cabinet, black anodized finish

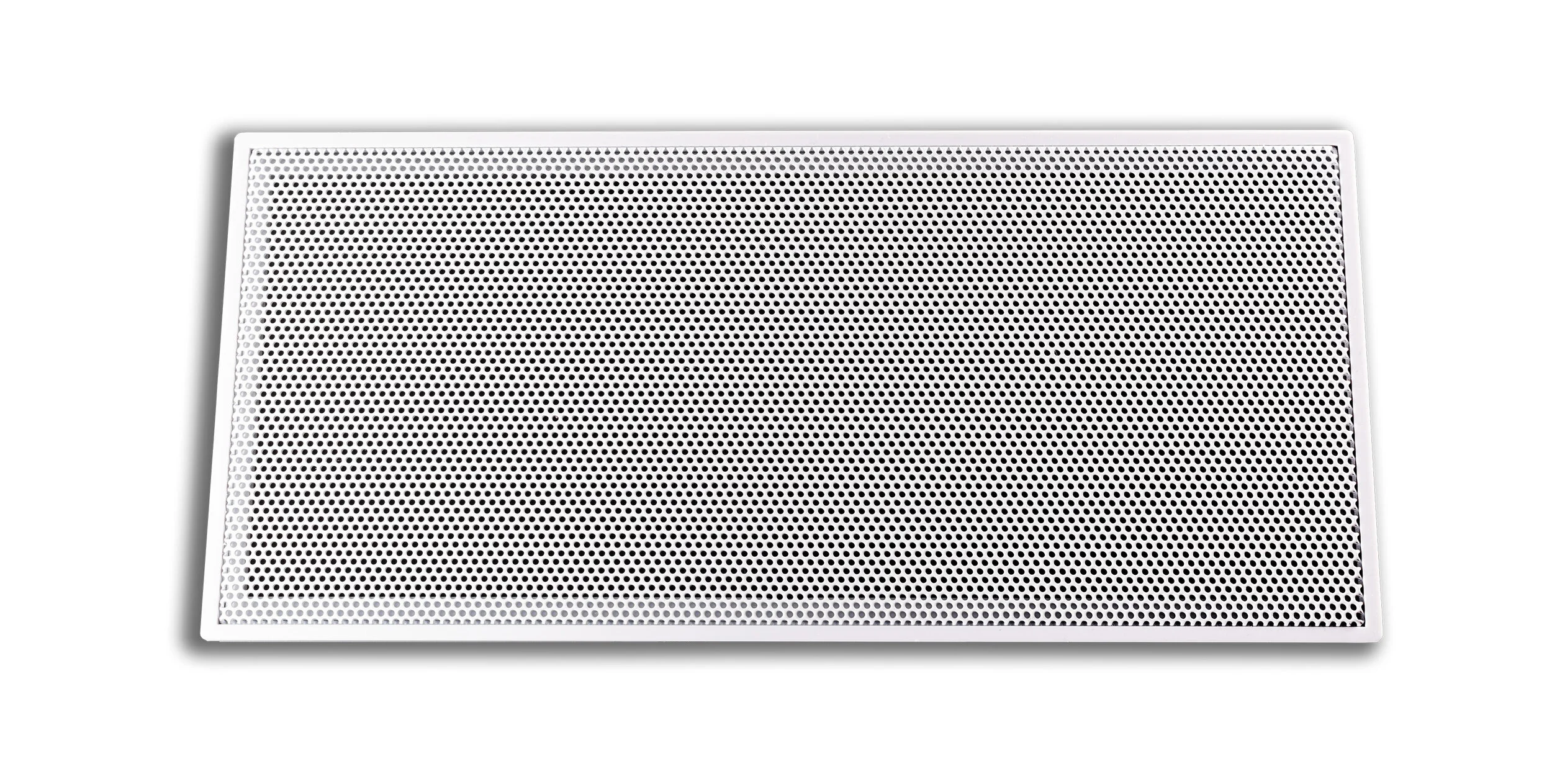

  • Multiple Grille Options.

RCC320 MKII CLOSE UP 3.jpg

RCC320 MKII

The RCC 320 MKII has been redesigned from the ground up, the MK II RCC subwoofers are based on an all-new four-inch by six-inch driver that provides deep, articulate, and powerful bass.

Easily installed into a standard 2 x 4 stud bay during pre-construction, special brackets easily secure it to the framing. Can also be installed in kitchen or living space cabinetry. IP65 rated.

Supplied with RCC320MKII & RCC160

Supplied with RCC320MKII & RCC160

RCC320 MKII.jpg
  • Driver Complement: (4) RCC 4" x 6" Woofers

  • Now with twice the excursion – Increased excursion equates to a greater dynamic presentation

  • System DCR: 6.4 Ohms

  • Power Handling: 200 WRMS

  • System response: 30 Hz - 160 Hz + 3 dB (+/- 3dB)

  • SPL: 91dB @ 2.83 V/1M

  • Magnetic Grilles: Micro Perforated Steel, Paintable

  • Cabinet: H (342mm) x W (355mm) x D (88mm)

  • Grille: H (360mm) x W (96mm) x D (3mm)

  • Extruded aluminum cabinet, black anodized finish




RCC1000 MKII AMPLIFIER

Powers up to 4 RCC320 MKII and up to 8 RCC160 subwoofers



  • Dimensions: H/W/D (mm) 44 x 483 (with ears) x 330 1U

  • 700W @ 4 ohms. Peak 1200W

  • Powers upto 4 RCC320 MKII & 8 RCC160 MKII at once

  • Auto voltage sensing 110-230 AC

  • Signal Sensing

  • LED indicator front panel

  • Remote control volume and movie/music

  • IR jack, Phase, slope

  • Low-level in/outputs

  • Gold plated large gauge speaker terminals


In Ceiling





MEZZ-8 SURROUND (PAIR)

Small, affordable high performance In-ceiling & In-wall speakers with Artison's unique hybrid acoustic design. Sealed enclosure for persistent performance

  • Hybrid Monopole/Dipole. Works as Monopole up to 3KHz and over 3KHz becomes Dipole

  • Frequency response 80Hz-20KHz (+/- 3dB)

  • Power Handling: 50-150 watts

  • Nominal Impedance: 6 Ohms

  • Cut out hole diameter 192mm

  • Diameter - 216mm • Depth - 89mm

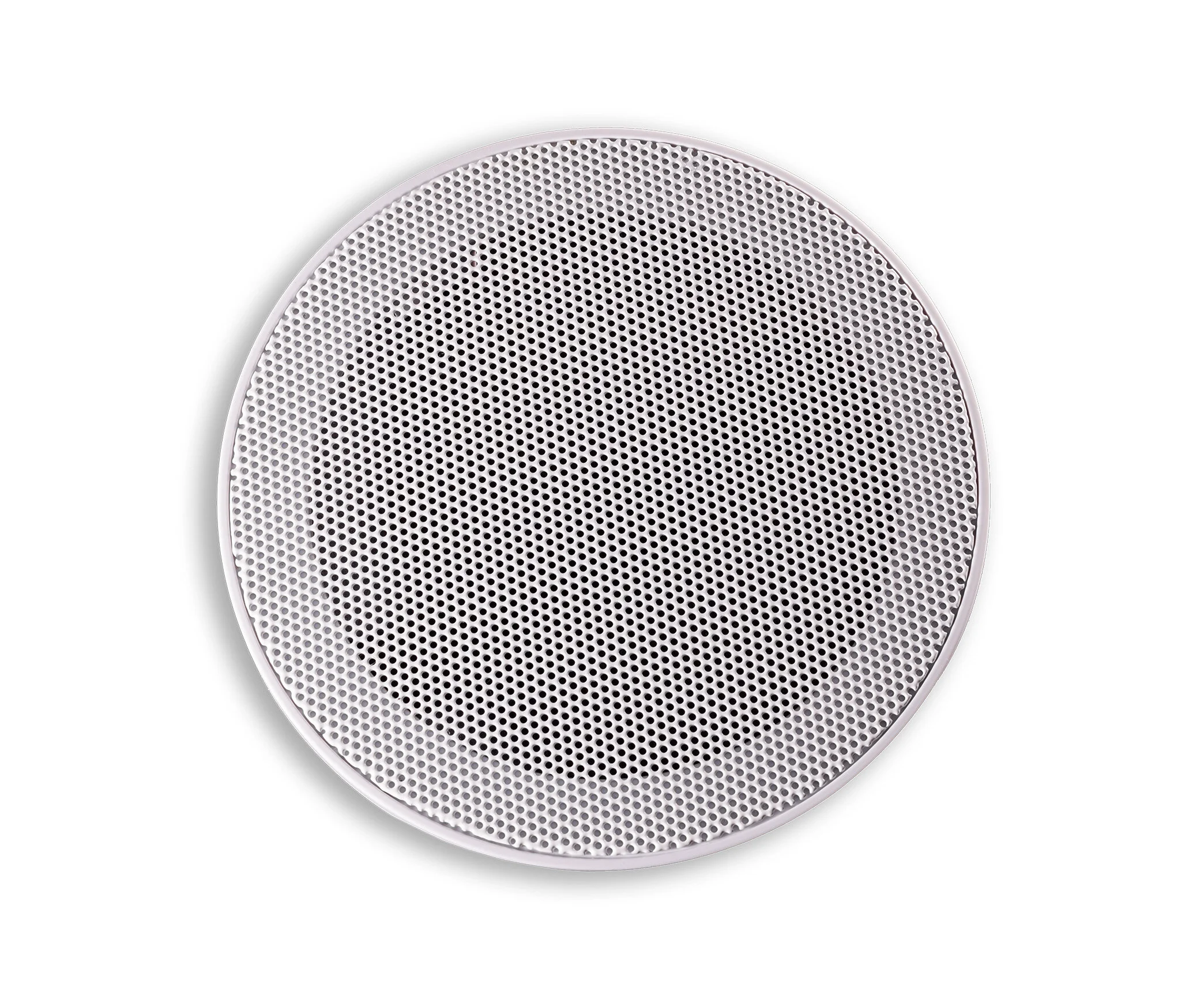

  • Round grille diameter - 231mm

  • Weight - 8kgs

  • Square grille also available (additional cost)


AccesSories

LCR DualMono® Mk II accesories





DM Universal TV Mounting Brackets

Brackets for use on DM models - curved brackets also available for curved TVs

UMB 46/60

  • Fits TVs with edge to edge bezel from 1029mm to 1765m

UMB 55/80

  • Fits TVs with edge to edge bezel from 1282mm to 2019mm

UMB 75/100

  • Fits TVs with edge to edge bezel from 1663mm to 2679mm

DM In-Wall Mounting Kit for (Pair)

Accepts Sketch, Portrait and Masterpiece

  • Kit size 834h x 235w x 76d mms

  • Grille attaches magnetically and is paintable

Custom Height and Colour Grilles for DM models (Pair)

All our custom made grilles are made in house to fit the height of your TV.

Custom colour cloth available at additional cost. Click here for more details.




STUDIO LCR ACCESSORIES




Studio 39 edits (20 of 22).jpg

Custom width grilles

‘With only 48hour turn around’*



All our custom made grilles are made in house to fit the width of your TV.

We can also accommodate most TV's which have bumps or IR ports up to a maximum of 14mm (please check with our team as this may incur an additional cost)

Brackets are not included with the Studio Soundbars

*We aim for 48 Hour turn around on grilles with no cut out and with standard black or white grille cloth colours. Bespoke colours and cut outs will take longer.

sony grille cleaner.jpg

Made to order
