The Mobius incorporates OptiDrive and OptiDamping technology as well as Reduced-Resonance Exciter technology, offering greater low frequency extension and smooth high frequency dispersion all the way to the ultrasonic region.

• Single panel no APU included
  Use APUi70C_2, APU-RS8iC or APU-RS16iC

• Plaster in-wall /in-ceiling speaker

• Dimensions: H/W/D (mm) 450 x 345 x 40

• Power Handling: 75W RMS, 150W Peak

• Frequency Response: 70Hz - 29KHz +/-6dB

• Can be mounted in stud, joists, metal frame or Solid wall

• Finish options; plaster, paint, wallpaper, wood veneer, corian

The perfect price to performance Mobius product. Incorporating OptiDrive and OptiDamping technology as well as Reduced-Resonance Exciter technology, the Mobius range offers smooth high frequency dispersion all the way to the ultrasonic region.

• Single panel no APU included
  Use APUi50C_2, APU-RS8iC or APU-RS16iC

• Plaster in-wall /in-ceiling speaker

• Dimensions: H/W/D (mm) 450 x 345 x 40

• Power Handling: 50W RMS, 100W Peak

• Frequency Response: 75Hz - 29KHz +/-6dB

• Can be mounted in stud, joists, metal frame or Solid wall

• Finish options; plaster, paint, wallpaper, wood, veneer, coria

Louder, deeper, and more efficient, the Edge7i goes down to an impressive 50hz +/- 6dB. Perfect for high-power residential/commercial distributed audio solutions and multi-channel surround sound systems.

• Single panel no APU included
  Use APUi70C_2, APU-RS8iC or APU-RS16iC

• Plaster "up to" in-wall /in-ceiling speaker

• Dimensions: H/W/D (mm) 450mm x 345mm x 40mm

• Power Handling: 75W RMS, 150W Peak

• Frequency Response: 50Hz - 27KHz +/-6dB

• Can be mounted in stud, joists, metal frame or Solid wall

• Finish options; plaster, paint, wallpaper, wood veneer

The Ultimate Plaster up to Invisible speaker sets a new standard at this price point. The perfect option for medium-power residential/commercial distributed audio solutions and multi-channel surround sound systems.

• Single panel no APU included
  Use APUi50C_2, APU-RS8iC or APU-RS16iC

• Plaster "up to" in-wall /in-ceiling speaker

• Dimensions: H/W/D (mm) 450mm x 345mm x 40mm

• Power Handling: 50W RMS, 100W Peak

• Frequency Response: 55Hz - 26KHz +/-6dB

• Can be mounted in stud, joists, metal frame or Solid wall

• Finish options; plaster, paint, wallpaper, wood veneer

Furthering on the award winning Edge Series, the Edge3i has been reformulated into the 300mm smaller frame. Perfect for installations where there is reduced stud spacing.

• Single panel no APU included.

  Use APUi30c/RS8ic/RS16ic

• Plaster "up to" in-wall /in-ceiling speaker

• Dimensions: H/W/D (mm) 450mm x 300mm x 40mm

• Power Handling: 30W RMS, 60W Peak

• Frequency Response: 90Hz – 24KHz +/-6dB

• Can be mounted in stud, joists, metal frame or Solid wall

• Finish options; plaster, paint, wallpaper, wood veneer

ALL NEW FOR 2023

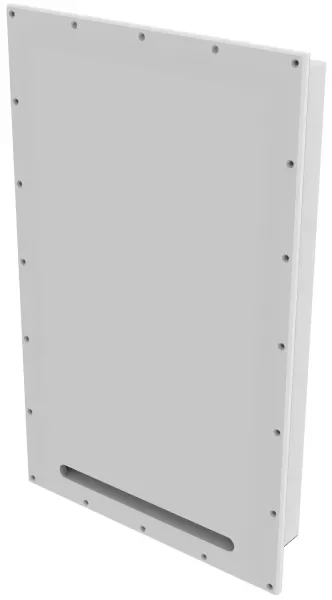

The Amina ALF100SM passive subwoofer is designed to partner Amina invisible, in-wall panel speaker systems in applications such as home cinema systems and large room, high pressure stereo systems.

• Dimensions: H/W/D (mm) 1066 x 409 x 99

• Weight: 20Kg

• Slot Ported

• Power: Handling 200W

• Nominal Impedance: 4 Ohms

• Frequency Response: 30Hz-160Hz +/- 6dB

• Sensitivity: 90dB @1m/2.83Vrms

A compact bass-enhancer perfect for adding extra warmth and punch. The ALF40 is designed to integrate with all Amina Invisible speakers.

• Dimensions: H/W/D (mm) 157 x 134 x 359

• Weight: 3.2Kg

• Ported Acoustic Bandpass with built in protection

• Power: Handling 40W

• Nominal Impedance: 8 Ohms
  (4 Ohm in passive configuration)

• Frequency Response: 65Hz-155Hz +/- 6dB
  (18dB/octave roll off)

• Sensitivity: 88dB @1m/1 W

Delivering a smooth, accurate and deep bass response at 108dB with only a small grill to show.

• Dimensions: H/W/D (cms) 605 x 270 x 156

• Weight: 9.2Kg

• Ported Acoustic Bandpass with built in protection

• Power: Handling 150W

• Nominal Impedance: 4 Ohms

• Frequency Response: 39Hz-140Hz +/- 6dB
  (18dB/octave band pass)

• Sensitivity: 86dB @1m/2.83V RMS half space

• Maximum SPL: 108dB

PLASTERBOARD BACKBOXES

SOLID WALL BACKBOXES

Whichever speaker you choose, a Backbox can assist in giving consistent audio performance and limit rearward sound transmission. All lined with ‘Inno-Therm’ soundproofing baton and constructed from 304 Stainless steel.

SW200 (For 200mm wide panels)

• Dimensions: H/W/D (mm) 455 x 209 x 50mm

• Solid, brick and stone wall back box for use with Mobius5i/S200

SW300 (For 300mm wide panels)

• Dimensions: H/W/D 405mm x 308mm x 50mm

• Solid, brick and stone wall back box for use with Edge3i. Mobius3i

SW345 (For 345mm wide panels)

• Dimensions: H/W/D (mm) 455.4 x 354 x 50mm

• Solid, brick and stone wall back box for use with Edge5i/7i, Mobius5i/7i

SINGLE channel protection units

Amina Protection Units make sure your speakers are safe and working at their best. Professionally installed panels with an APU are covered under warranty for 10 years in residential properties and 5 years commercial

• Single channel high-pass filter featuring current sensing with self-resetting fuse protection

• APUi30c - for use with Edge3i, Mobius3i, Mobius Dual and Mobius5i/S200

• APUi50c - for use with Mobius5i and Edge5i

• APUi70c - for use with Mobius7i, Edge 7i
